Baja Designs

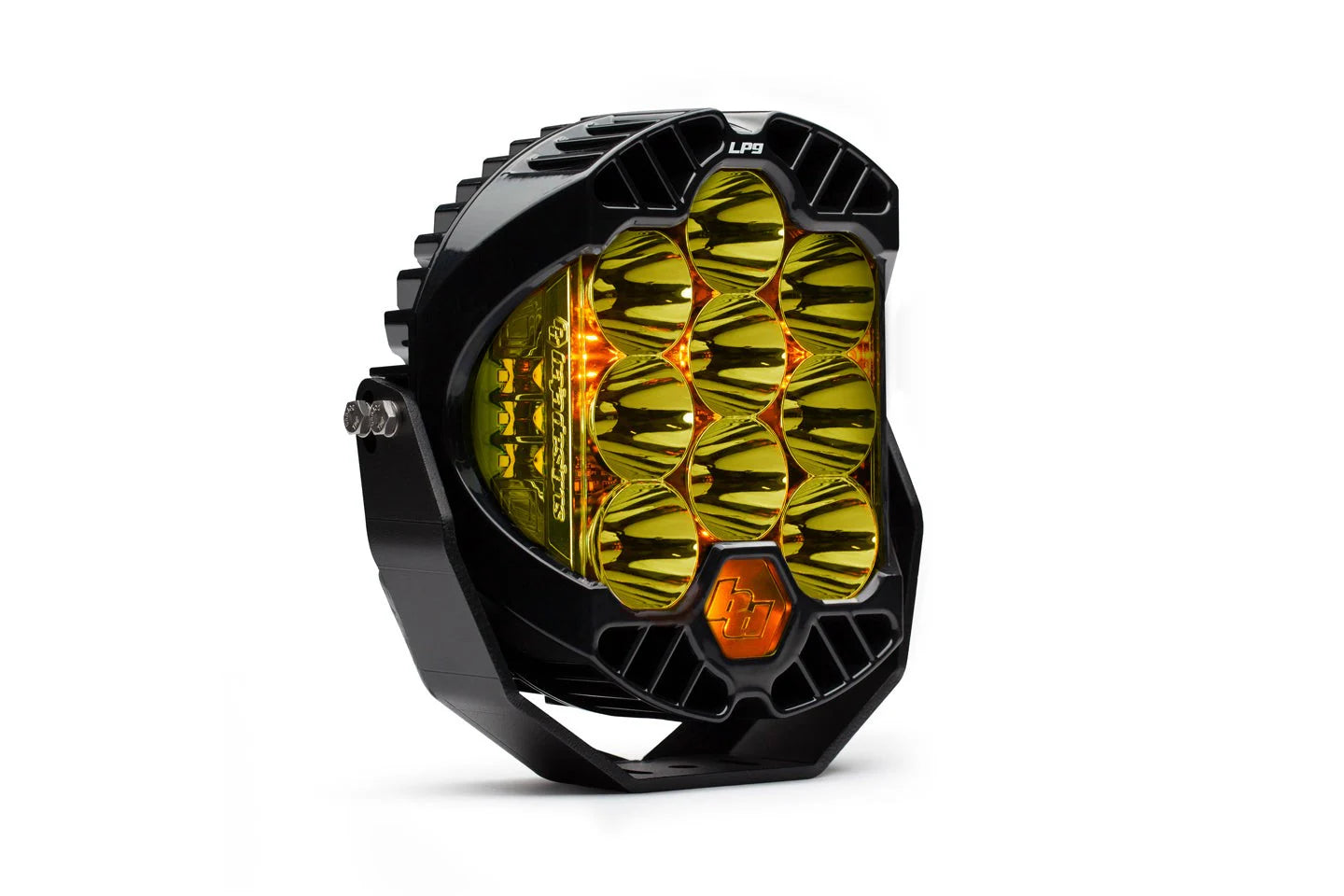

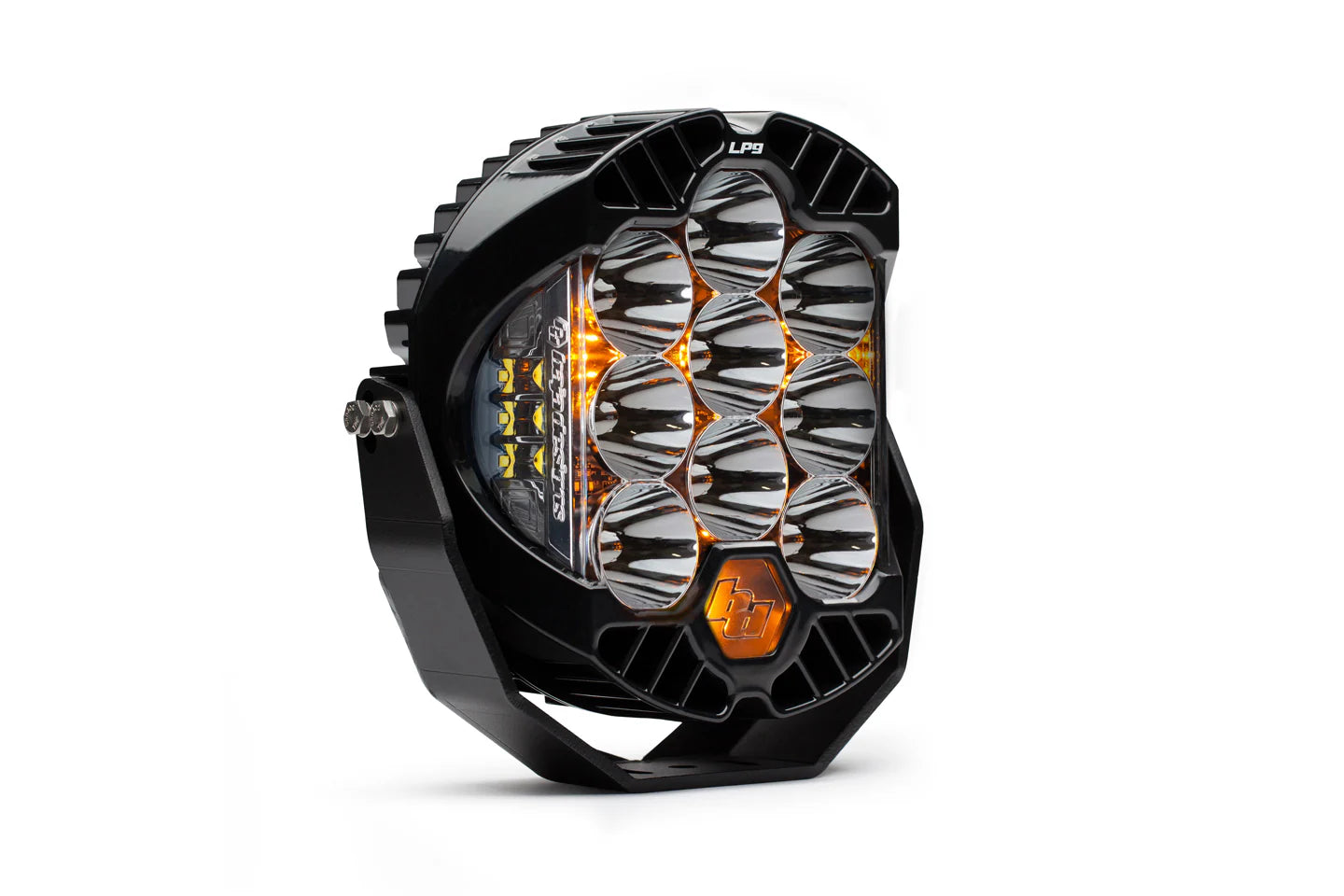

Baja Designs Aux LED - LP9 RACER EDITION

Baja Designs Aux LED - LP9 RACER EDITION

Regular price Rs. 66,000.00
Regular price Sale price Rs. 66,000.00
Sale Sold out
Taxes included.
Pattern
PCS
Color: Amber
Contact us

Description:

Though the design was inspired by Baja Designs’ legendary 8-inch La Paz HID; The LP9 Racer Edition LED Pod features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes nine forward-projecting LEDS to produce 8,374 lumens and six LEDs for Integrated Peripheral Technology (IPT) which produce 2,302 lumens. The IPT sports an incredible 200-degree spread of usable light. The housing provides exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light,  high power mode, the LP9 racer easily takes care of all your lighting needs.

Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration perfect for the demands of high-speed driving. The Racer Edition has a similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService® technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens

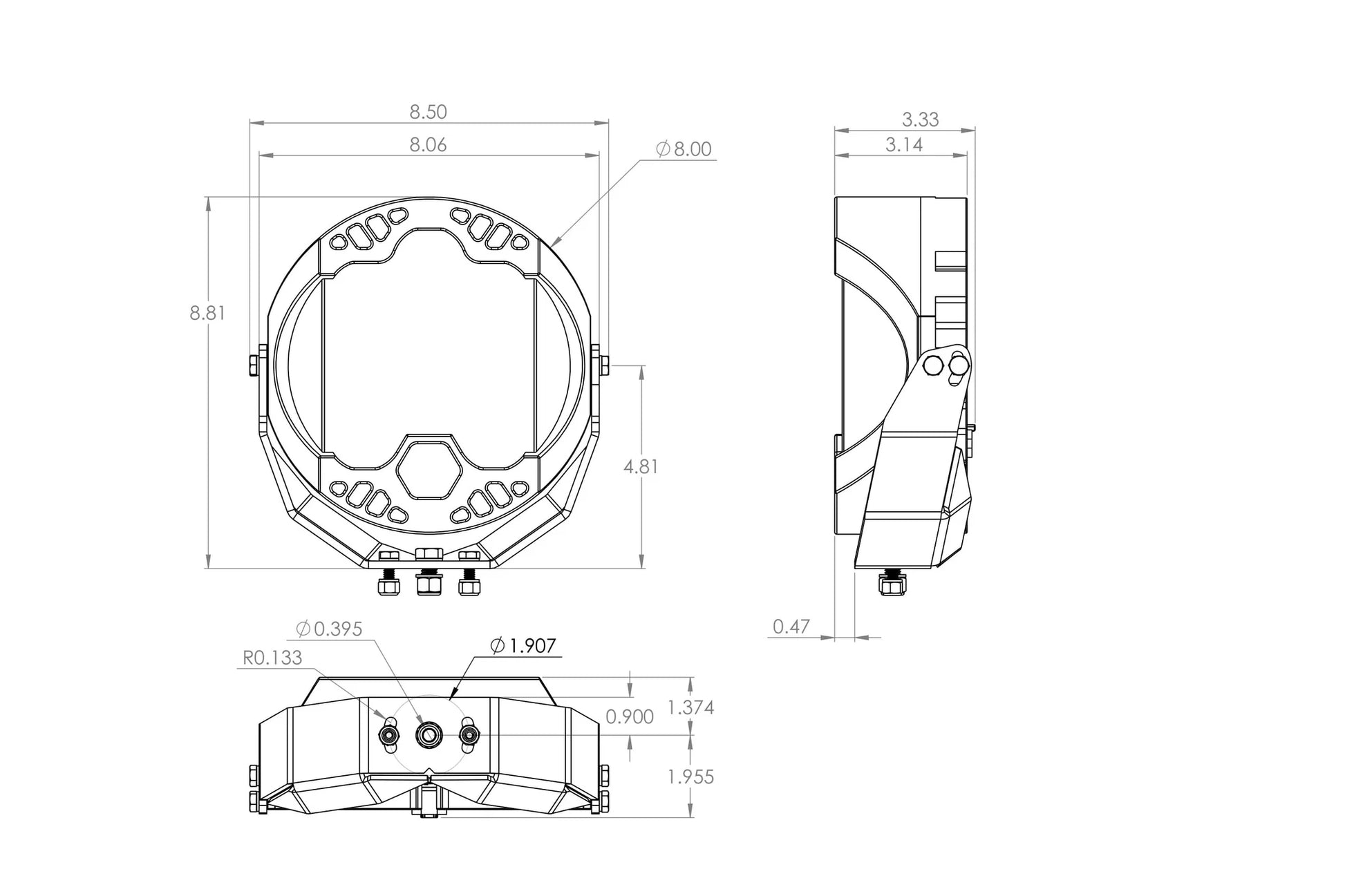

Dimensions:

Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500



Specifications:

Amperage Rating (A) 9.600
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Racer Edition Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 8374
Description Racer Edition Spot; Amber
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Amber
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Racer Edition LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Type LED
Secondary Lighting Technology Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 132.480
Wiring Harness Included No



Standards & Compliance:

Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
