Baja Designs Aux LED - S2 SPORTS

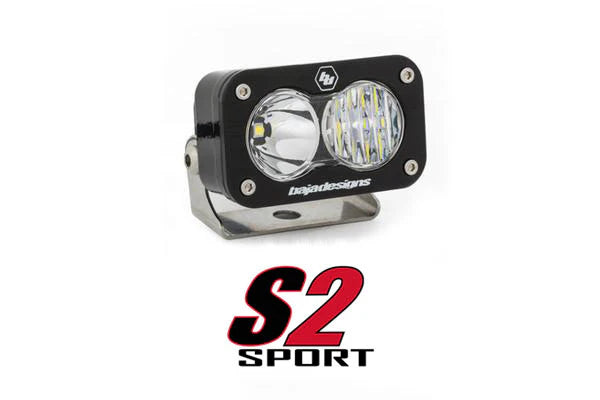

Aux LED S2 Sports:

The S2 Sport features the same quality, fit, and finish that is synonymous with the Baja Designs name, at an attractive price point. The S2 Sport is ideal as a fog, cornering, rack, or reverse light and much more. A compact and powerful light, featuring quality that is second to none.

When bought as a pair it includes a simple wiring harness included. A basic on off switch ( not handlebar switch). Does not include a relay, diode etc.

Baja Designs Features:

• uService® – Replaceable Lenses And Optics

• ClearView® – All The Light, Right Where You Need It.
• MoistureBlock™ – Waterproof, Rain Proof, Submersible
• CopperDrive® – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications (Per Light):

• Lumens: 1,581 Utilizing 2 LEDs
• Wattage/Amps: 12W / .9A
• Dimensions: 74.4mm (2.93") x 44.7mm (1.76") x 42.6mm (1.68")
• Weight: 226.7g
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Hard Anodized & Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 2743mm (9ft) & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

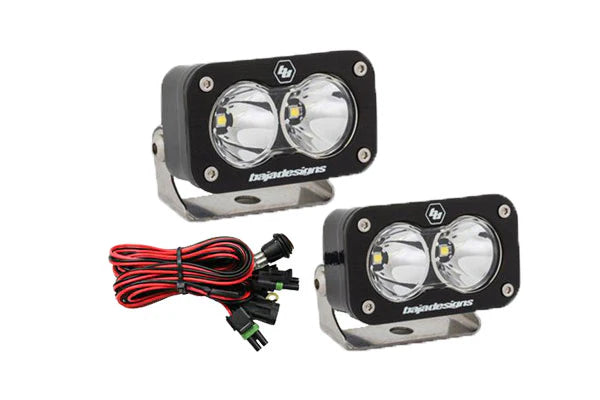

Contains:

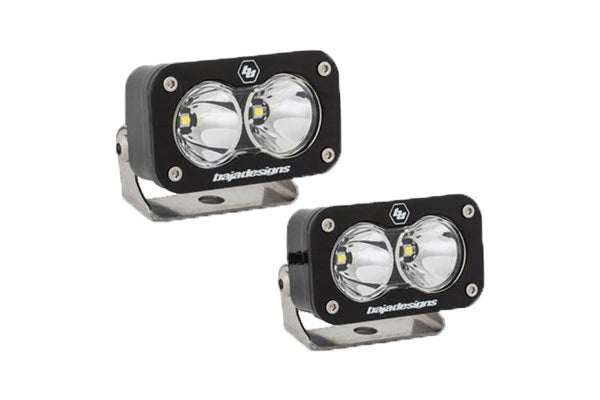

• (2) LED Lights
• LED Holding Brackets (Not Engine bar clamps)

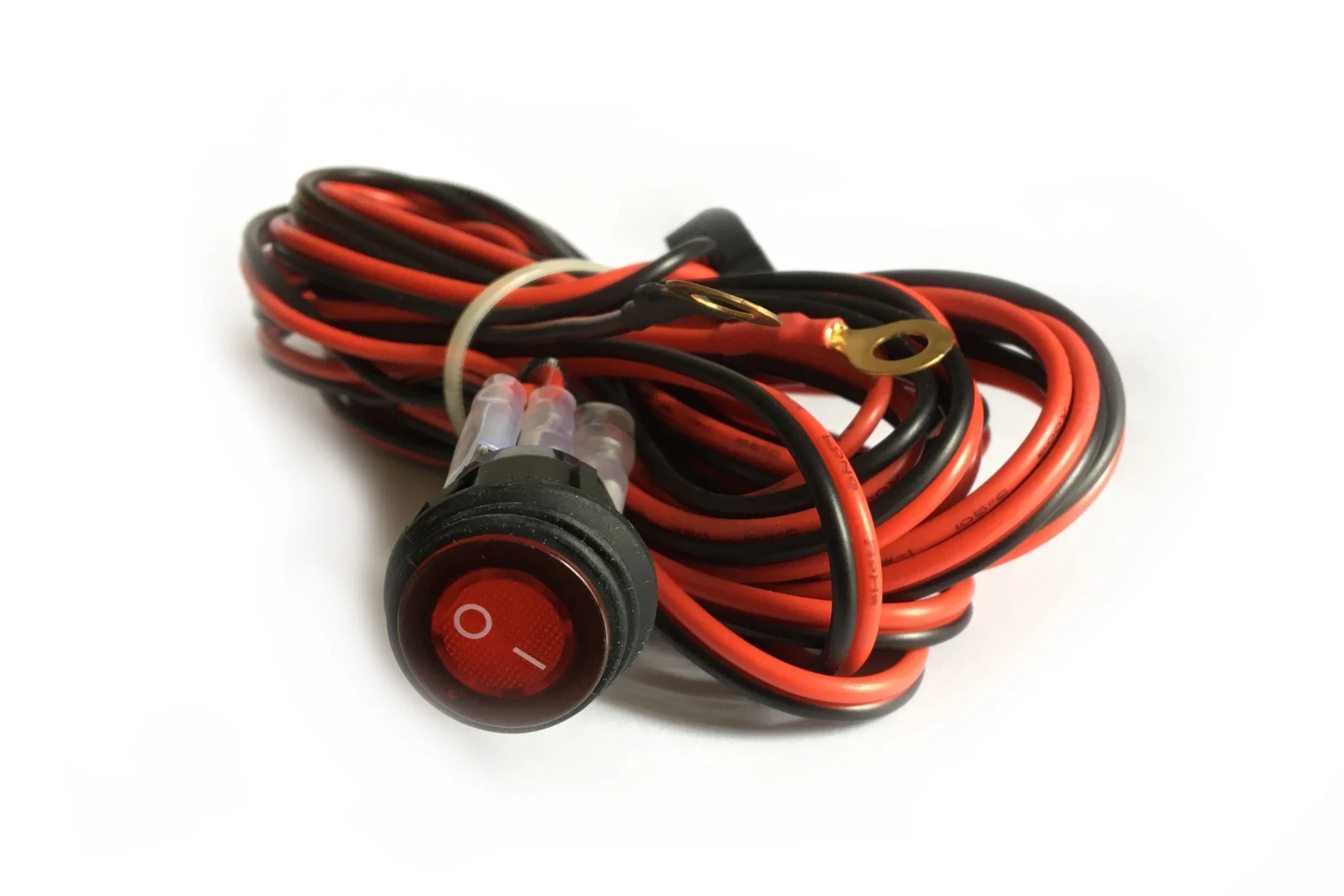

• Basic Wiring Harness ( Rel)

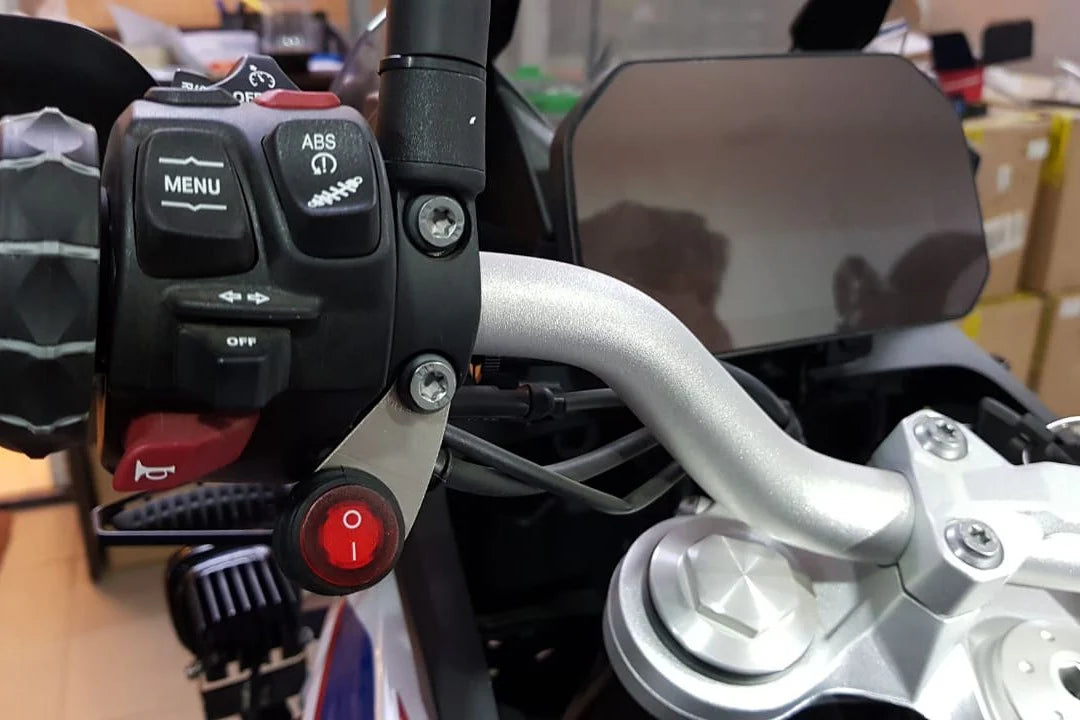

• Wiring harness has an inbuilt on/off switch ( With a SS bracket for installation - Refer image)

Optional / Additional Upgrade available on request

1. Longer Wiring Harness with Connectors and Push Button Switch Included
2. Brackets 25mm (1") or  22.2mm (7/8th Inch) ( engine Bar clamps) Included

Patterns:

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Available on Order:-
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Flood: Excellent work light or “scene light” with an extremely smooth 60° circle that projects about 40ft.  This pattern is not suitable for driving. (Lighting Zone 7)
