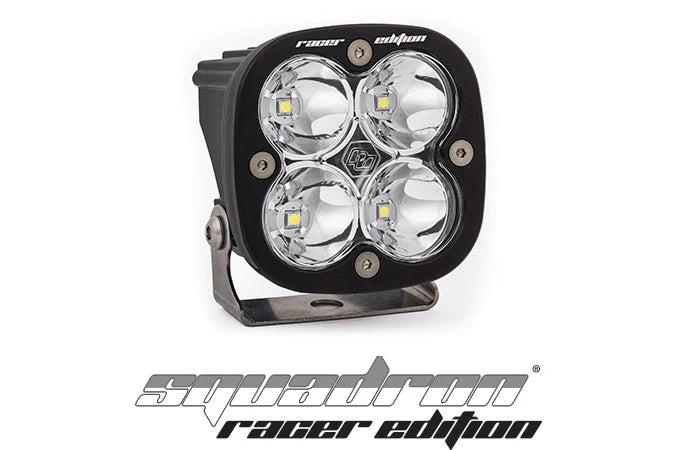

Baja Designs Aux LED - SQUADRON RACER

Squadron Racer Edition 4300 Lumens/pc - Spot

Squadron Racer Racer Edition

• Baja Designs is proud to introduce the Squadron Racer, with 4,300 lumens. The Squadron Racer throws light an average of 40% further than the Squadron Pro with a High-intensity LED, housed in hard anodised and powder coat cast aluminium.
• Enjoy nearly 50,000 hours of bright, efficient lighting to enhance your nighttime off-roading experiences! As always, Baja Designs provides the best in auxiliary LED lights
• Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (40°) and spot (7°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Baja Designs Features:

Limited Lifetime Warranty
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Colour

Specifications (Per Light):

Lumens: 4,300 Utilising 4 High Intensity LEDs
Wattage/Amps:  40W / 3.33A
Dimensions: 77.9mm x 70.3mm x 77.9mm (3.07" x 2.77" x 3.07")
Weight: 340g
LED Life Expectancy: 49,930 Hours
Front Lens:  Hardccoated Polycarbonate
Housing:  Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 2743mm (9ft) & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

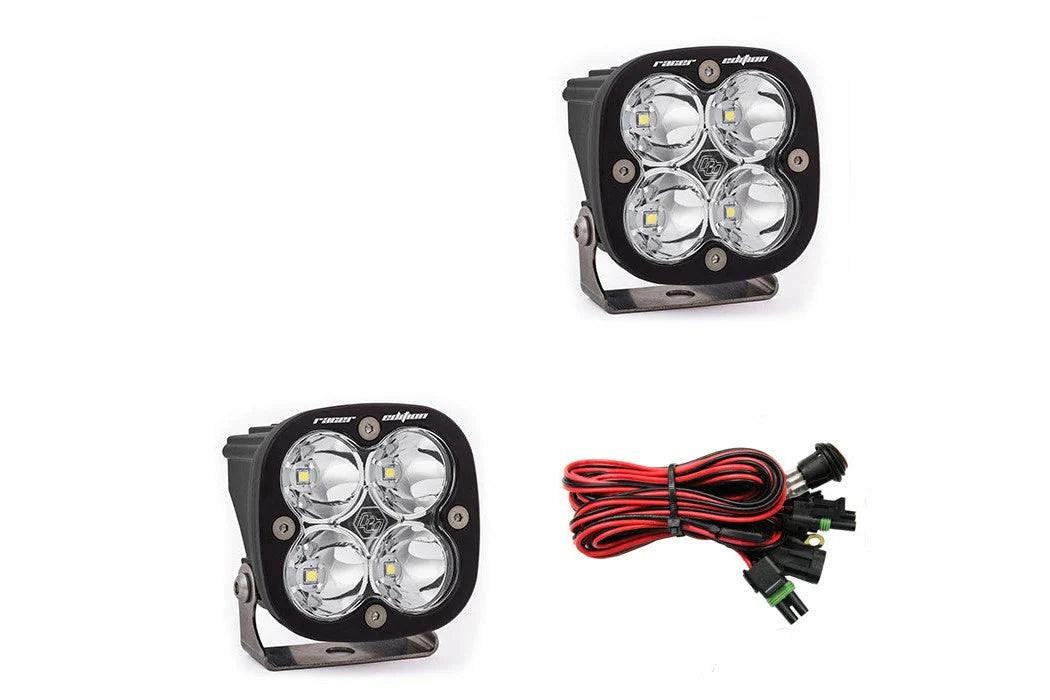

Contains:

• (2) LED Lights
• LED Holding Brackets (Not Engine bar clamps)
• Basic Wiring Harness ( no relay or fuse)

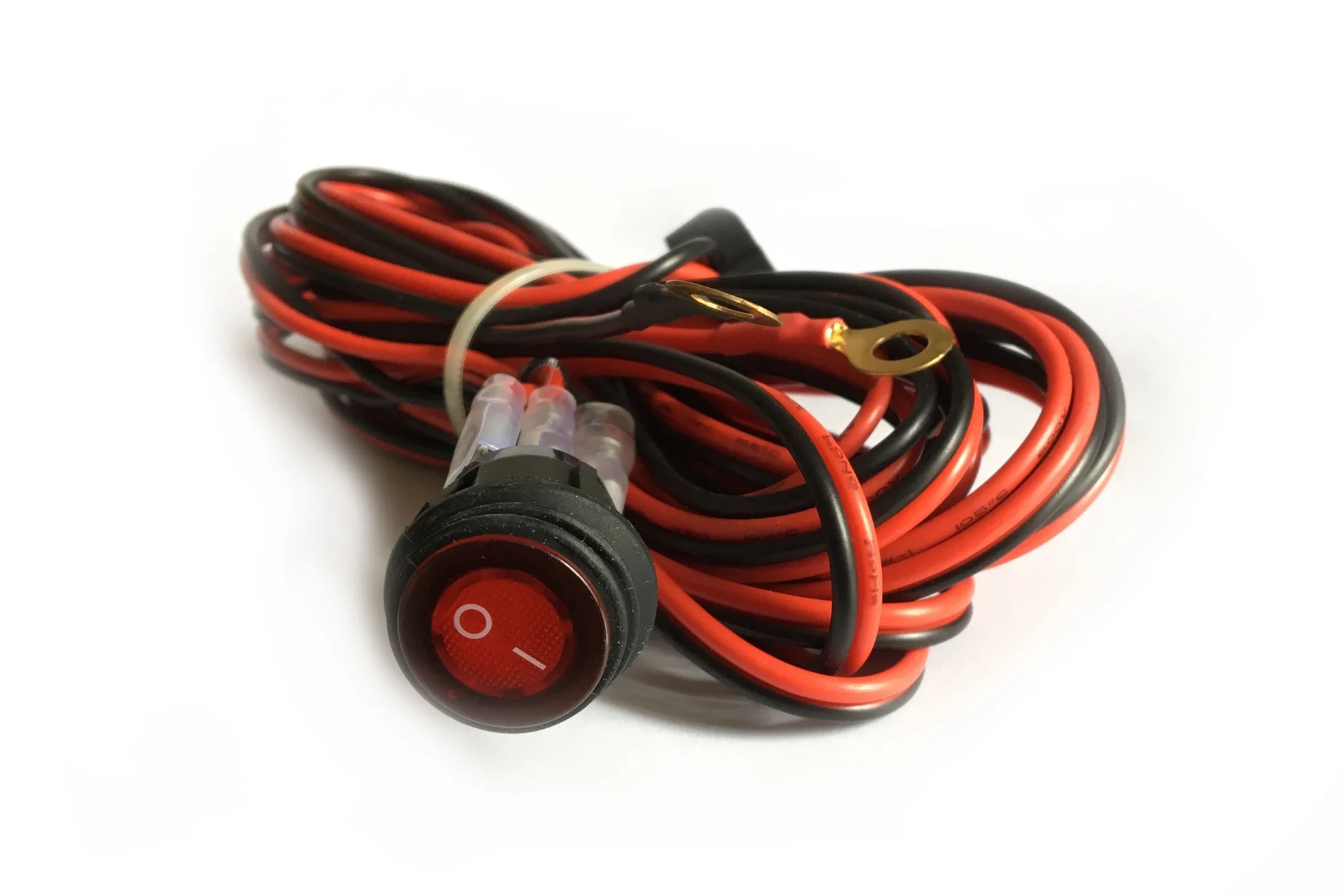

• Wiring harness has an inbuilt on/off switch ( Does not mount a handlebar  - Refer image)

Optional / Additional Upgrade available on request

1. Longer Wiring Harness with Connectors and Push Button Switch Included

2. Brackets 25mm (1") or  22.2mm (7/8th Inch) ( engine Bar clamps) Included
