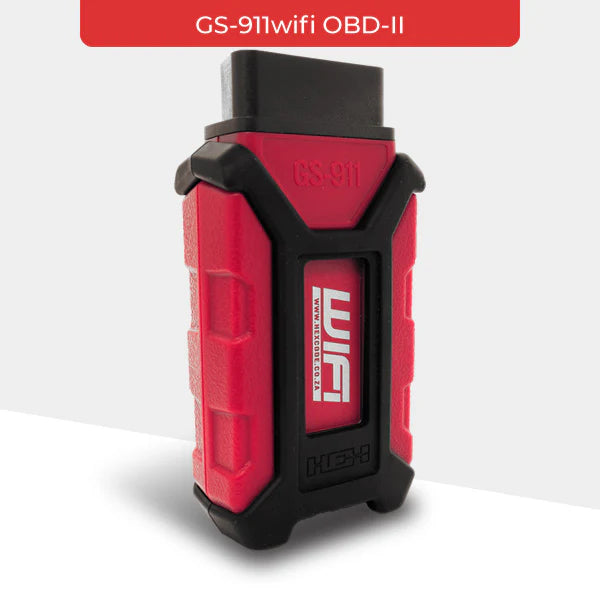

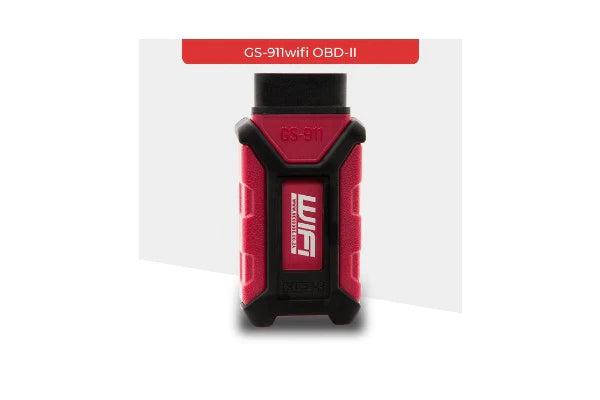

HEX ezCAN - GS-911 WiFi - Gen 2 (OBD-II Connector)

HEX ezCAN - GS-911 WiFi - Gen 2 (OBD-II Connector)

Rs. 45,000.00
Rs. 45,000.00
Sale Sold out
Taxes included.
Contact us

The HEX GS-911 diagnostic tool gives you greater insight into what’s going on inside your motorcycle with a laptop or smart phone, whilst you are on the move. With the GS-911 you can read and clear fault codes, reset service reminders and much more…

  • Professional Licence (Service Functionality for Unlimited VINS)
  • Enthusiast Licence (Service Functionality for 10 VINS)

Description:

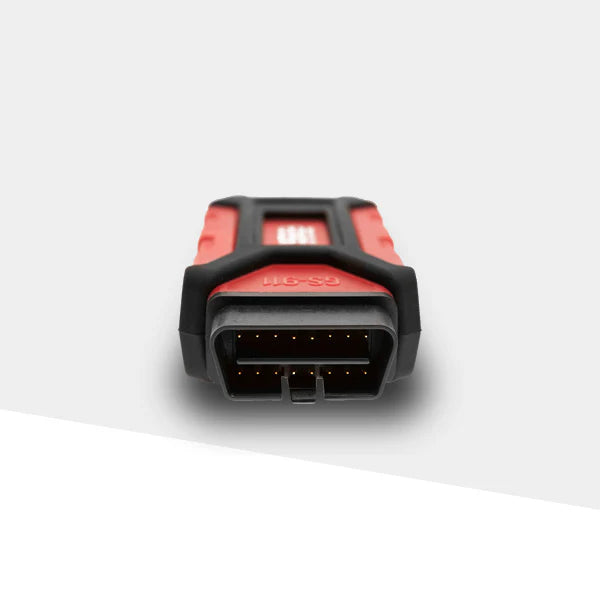

Connecting the GS-911 to a new EU-4 compliant BMW motorcycle without an adaptor cable is now possible. This GS-911wifi features a J1962 (OBD-II) connector. This GS-911wifi model is compatible with all newer EU-4 compliant BMW motorcycles with OBD-II connector ports. In addition, when used in conjunction with the female OBD-II adaptor cable this product is also backwards compatible and supports ALL the previous models of BMW motorcycles that have round 10-pin diagnostic connectors.

D2D (device-to-device) and HEX Cloud enabled, this model is also available in both Enthusiast and Professional license options.

Additional Information:

WEIGHT 280 g
DIMENSIONS 145 × 160 × 42 mm



 Your GS-911wifi functionality

emergency_icon.png EMERGENCY functionality is embedded in the GS-911wifi unit. It lets the user view ECU information, Read & Clear Fault codes on ALL control units, and view Real-time Live sensor data for ALL engine control units. Any device with a Browser and Wifi are supported
service_icon.png SERVICE functionality includes the ability to reset Service Reminders, do Output Function Tests, Calibrations, ABS Bleed Tests, Clear & Relearn Adaptations and much mode. Available with the Windows PC app.
cloud_icon.png CLOUD functionality enables a mobile device (or laptop) with an html 5 compliant browser that is connected to the HEX CLOUD server through the internet, to have access to the Service functionality that was previously only available in the Windows PC application.



Connecting to your GS-911wifi

Your GS-911wifi comes with both USB and Wifi.  The GS-911 Windows PC software can be used over either the USB or Wifi connection.  The Windows PC software has the the full functionality for every model that is supported by GS-911.

If you are on the road, no where near your home/office/garage wifi, you can connect your mobile device (could be any phone, tablet, iPad etc.), to your GS-911wifi device, using the GS-911's built in soft Access Point, or as we refer to it "Device-to-Device" (D2D) mode.  Simply scan for a wifi network that starts with GS-911... and connect to it - it's that simple!

Note: When using D2D mode you only have access to the embedded EMERGENCY Functionality - see above definitions.

Using any device with a html 5 browser and wifi (Android phone/tablet, iPhone/iPad, MAC, etc.), that also has internet access, you are able to connect to the HEX CLOUD.  This gives you SERVICE functionality that was previously limited to the Windows PC version.  Be sure to keep an eye on this evolving functionality!

where:  PC.jpgWindows PC/Laptop,   Infrastructure.jpgWifi Router/AccessPoint,   MobileDevice.jpgAny device with a Browser and Wifi

 Specifications:

Software

GS-911 Windows PC software

GS-911wifi mobile app (iOS and Android)

On-board GS-911wifi web interface (using any HTML5 web browser)
On-Board File Storage 4GB or 8GB
Connection USB or WiFi
USB Connector B-Type (cable supplied)
Power Supply USB and/or 12V from 10-pin connector
WiFi Compatibility 802.11b/g 2.4GHz channels 1 to 11
WiFi Range Within the same room (less than 10 meter)
WiFi Modes Infrastructure and D2D SoftAP (channel 6)
WiFi Security Options None/WEP/WPA/WPA2



Fitment and compatibility:

Adaptors & Connectors
BMW
BMW K 1600 Bagger (2009-2021)
BMW K 1600 Grand America (2017 onwards)
BMW K 1600 GT (2017-2021)
BMW K 1600 GT / GTL (2017-2021)
BMW R1200 GS LC (2017-2019)
BMW R1200 R (2015-2018)
BMW R1200 RS (2015-2018)
BMW R1200 RT LC (2014-2018)
BMW R1250 GS (2019-2023)
BMW R1250 GSA (2019-2023)
BMW R1250 R (2019-2023)
BMW R1250 RS (2019-2023)
BMW S1000 R (2018-2020)
BMW S1000 RR (2016-2018)
BMW S1000 XR (18-19)
BMW S1000RR (2019-2022)
BMW S1000XR (2020-2021)
