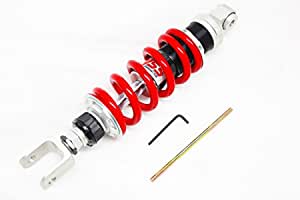

YSS SUSPENSION SHOCK ABSORBER 250RR 2016 YSS SUSPENSION SHOCK ABSORBER 250RR 2016 YSS SUSPENSION Description HONDA-250RR MZ366-310TRL-54-JX Technical InfoYEAR:2016-currentPRODUCT GROUP:RacingSHOCK TYPE:REAR MONO SHOCKPRODUCT TYPE:Top External Reservoir Piggy Back Gas ShockABE:-LENGTH:315-325 (MM.)TOP:10×30 (MM.)BOTTOM:F.32×10 (MM.)SPRING:56-120-130 (MM.)PISTON SIZE:45 (MM.)SHAFT SIZE:16 (MM.) HIGH-LOW SPEED Adjustable Hi-Low Speed Compression a zenith of the compression control technology. H-L valve is designed to maintain and control the flow and the high speed valve is set to active when the oil pressure is too high so the shocks will not get Hydraulic Lock. HYDRAULIC SPRING PRELOAD CABLE Hydraulic Spring Preload on Hose. This is similar to Hydraulic Spring Preload except the knob is placed on the hose which make it more accessible. . The advantage of bringing the series to a hydraulic line for easy adjustment. REBOUND ADJUSTABLE Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial. LENGTH ADJUSTABLE Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths +/- 5 mm. BRAND YSS SUSPENSION Additional information WEIGHT 5 kg

YSS SUSPENSION SHOCK ABSORBER 250RR 2016

Code: HO1
Rs. 21,050.00
In Stock
Add to Wishlist Add to Compare
  • 1-4 DAYS DELIVERY

  • 100% ORIGINAL AND QUALITY

  • 24 MONTHS GUARANTEE

Description

HONDA-250RR

MZ366-310TRL-54-JX

Technical Info
YEAR:2016-current
PRODUCT GROUP:Racing
SHOCK TYPE:REAR MONO SHOCK
PRODUCT TYPE:Top External Reservoir Piggy Back Gas Shock
ABE:-
LENGTH:315-325 (MM.)
TOP:10×30 (MM.)
BOTTOM:F.32×10 (MM.)
SPRING:56-120-130 (MM.)
PISTON SIZE:45 (MM.)
SHAFT SIZE:16 (MM.)

HIGH-LOW SPEED

Adjustable Hi-Low Speed Compression a zenith of the compression control technology. H-L valve is designed to maintain and control the flow and the high speed valve is set to active when the oil pressure is too high so the shocks will not get Hydraulic Lock.

HYDRAULIC SPRING PRELOAD CABLE

Hydraulic Spring Preload on Hose. This is similar to Hydraulic Spring Preload except the knob is placed on the hose which make it more accessible. . The advantage of bringing the series to a hydraulic line for easy adjustment.

REBOUND ADJUSTABLE

Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.

LENGTH ADJUSTABLE

Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths +/- 5 mm.

BRAND

YSS SUSPENSION

Additional information

WEIGHT 5 kg
