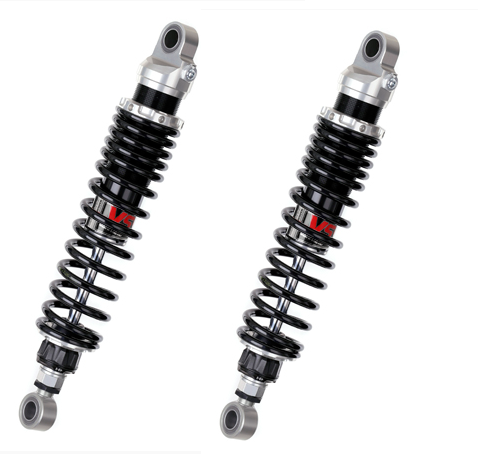

YSS SUSPENSION SHOCK ABSORBER BONNEVILLE T120 2016 Onwards

Code: TR193
Rs. 44,200.00
In Stock
Add to Wishlist Add to Compare
Category: Suspensions
  • 1-4 DAYS DELIVERY

  • 100% ORIGINAL AND QUALITY

  • 24 MONTHS GUARANTEE

Description

TRIUMPH-BONNEVILLE T120

RZ362-350TRL-48-88 (SPRING-BLACK BODY -SILVER)

Technical Info
YEAR:2015-current
PRODUCT GROUP:Topline
SHOCK TYPE:REAR MONO SHOCK
PRODUCT TYPE:Emulsion Gas Shock
ABE:-
LENGTH:275-285 (MM.)
TOP:12×35 (MM.)
BOTTOM:12×60 (MM.)
SPRING:46-150-140 (MM.)
PISTON SIZE:36 (MM.)
SHAFT SIZE:16 (MM.)

THREAD SPRING PRELOAD

Thread Spring Preload or adjustable spring screw. By threading the cylindrical shock absorbers user can turn the preload to fine tune the spring and tighten a provided bolt to fix the ring in its position

REBOUND ADJUSTABLE

Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.

LENGTH ADJUSTABLE

Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths +/- 5 mm.

BRAND

YSS SUSPENSION

Additional information

WEIGHT 5 kg
