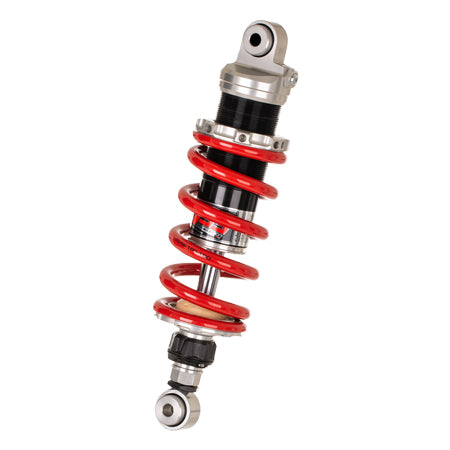

YSS SUSPENSION SHOCK ABSORBER DUKE 390 2013-2017
YSS SUSPENSION SHOCK ABSORBER DUKE 390 2013-2017
YSS Suspension
Description
KTM-DUKE 390
MZ456-300TRJ-38-85 (B/R)
Technical InfoYEAR:2013-2017PRODUCT GROUP: ToplineSHOCK TYPE:REAR MONO SHOCKPRODUCT TYPE: Emulsion Gas ShockABE:-LENGTH:300-310 (MM.)TOP:10×32 (MM.)BOTTOM:10×32 (MM.)SPRING:56-100-150 (MM.)PISTON SIZE:45 (MM.)SHAFT SIZE:16 (MM.)
THREAD SPRING PRELOAD
Thread Spring Preload or adjustable spring screw. By threading the cylindrical shock absorbers, user can turn the preload to fine tune the spring and tighten a provided bolt to fix the ring in its position.
REBOUND ADJUSTABLE
Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.
LENGTH ADJUSTABLE
Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths +/- 5 mm
BRAND
YSS SUSPENSION
Additional information
WEIGHT
5 kg
YSS SUSPENSION SHOCK ABSORBER DUKE 390 2013-2017
-
1-4 DAYS DELIVERY
-
100% ORIGINAL AND QUALITY
-
24 MONTHS GUARANTEE
Description
KTM-DUKE 390
MZ456-300TRJ-38-85 (B/R)
Technical Info
YEAR:2013-2017
PRODUCT GROUP: Topline
SHOCK TYPE:REAR MONO SHOCK
PRODUCT TYPE: Emulsion Gas Shock
ABE:-
LENGTH:300-310 (MM.)
TOP:10×32 (MM.)
BOTTOM:10×32 (MM.)
SPRING:56-100-150 (MM.)
PISTON SIZE:45 (MM.)
SHAFT SIZE:16 (MM.)
THREAD SPRING PRELOAD
Thread Spring Preload or adjustable spring screw. By threading the cylindrical shock absorbers, user can turn the preload to fine tune the spring and tighten a provided bolt to fix the ring in its position.
REBOUND ADJUSTABLE
Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.
LENGTH ADJUSTABLE
Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths +/- 5 mm
BRAND
YSS SUSPENSION
Additional information
| WEIGHT | 5 kg |
|---|
