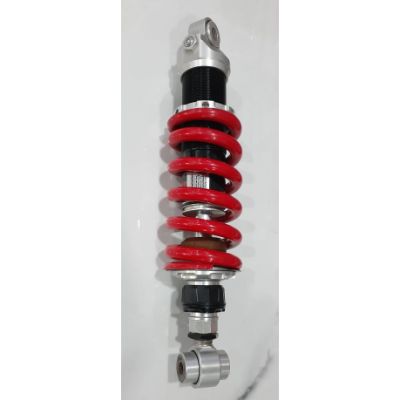

YSS SUSPENSION SHOCK ABSORBER IMPULSE 2013-2017

Code: HO95
  • 1-4 DAYS DELIVERY

  • 100% ORIGINAL AND QUALITY

  • 24 MONTHS GUARANTEE

Description

HONDA-IMPULSE

MZ366-300TRL-67-X

Technical Info
YEAR:2019-current
PRODUCT GROUP:Racing
SHOCK TYPE:REAR MONO SHOCK
PRODUCT TYPE:External Reservoir On Hose Gas Shock
ABE:-
LENGTH:295-305 (MM.)
TOP:10×30 (MM.)
BOTTOM:F.30×12 (MM.)
SPRING:46-100-150 (MM.)
PISTON SIZE:36 (MM.)
SHAFT SIZE:16 (MM.)

HIGH-LOW SPEED

Adjustable Hi-Low Speed Compression a zenith of the compression control technology. H-L valve is designed to maintain and control the flow and the high speed valve is set to active when the oil pressure is too high so the shocks will not get Hydraulic Lock.

THREAD SPRING PRELOAD

Thread Spring Preload or adjustable spring screw. By threading the cylindrical shock absorbers user can turn the preload to fine tune the spring and tighten a provided bolt to fix the ring in its position

REBOUND ADJUSTABLE

Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.

LENGTH ADJUSTABLE

Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths +/- 5 mm.

BRAND

YSS SUSPENSION

Additional information

WEIGHT 5 kg
