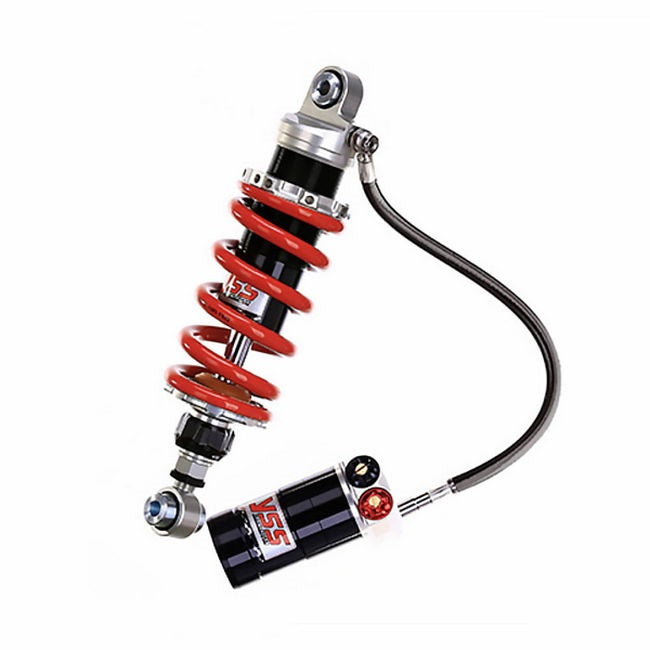

YSS SUSPENSION SHOCK ABSORBER RC 390 FULL RACING 2013-2018

Code: K56
Rs. 108,160.00
In Stock
Add to Wishlist Add to Compare
  • 1-4 DAYS DELIVERY

  • 100% ORIGINAL AND QUALITY

  • 24 MONTHS GUARANTEE

Description

KTM-RC 390 FULL RACING

MU456-300HRWL-46-JRX

Technical Info
YEAR:2014-current
PRODUCT GROUP:Racing
SHOCK TYPE:REAR MONO SHOCK
PRODUCT TYPE:Bottom External Reservoio Piggy Back Gas Shock
ABE:-
LENGTH:300-310 (MM.)
TOP:10×32 (MM.)
BOTTOM:10×32 (MM.)
SPRING:56-130-130 (MM.)
PISTON SIZE:45 (MM.)
SHAFT SIZE:16 (MM.)

HIGH-LOW SPEED

Adjustable Hi-Low Speed Compression a zenith of the compression control technology. H-L valve is designed to maintain and control the flow and the high speed valve is set to active when the oil pressure is too high so the shocks will not get Hydraulic Lock.

HYDRAULIC SPRING PRELOAD

Hydraulic Spring Preload make sprint adjustment easier by using hydraulic cylinder. User can rotate the knob to make the springs stiffer or softer

REBOUND ADJUSTABLE

Rebound Adjustable is to control the recovery of the shock absorber. Fast or slow depending on driver needs. It is designed to have a volume control knob needle shaft Free Bleed oil through hole and the knob Rebound is designed to sense the adjusted time adjustment dial.

LENGTH ADJUSTABLE

Adjustable length. It helps increase the length of the shock absorber. The two types can be upgraded to 10 mm or adjustable lengths +/- 5 mm.

BRAND

YSS SUSPENSION

Additional information

WEIGHT 5 kg
